Description

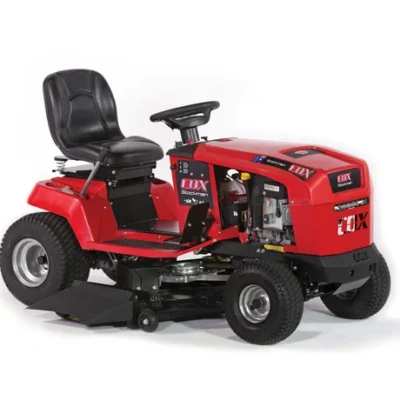

Comfortable, affordable and user-friendly. Since 1993 the Cox Stockman ride-on mower has been an Australian-designed mower known for durability, reliability, value and a fit to Australian conditions.
Equipped with a 32″ (805mm) fabricated cutter deck, the Stockman is designed for easy maintenance and comes with a Tuff Torq hydrostatic transmission with a built-in differential for manoeuvrability.
Discover the Stockman
- Easy lift deck height adjustment.
- Comfort seat with springs.
- 32″ fully fabricated deck.
- Pivoting front axle.
- Twin drink holders.
- Electric pull-button cutting engagement.
Stockman 32″ specifications
| Model | CTH32 – Cox 32″ hydro, electric clutch PTO |
| Engine | |
| Cylinders | Single |
| Displacement | Minimum 432cc |
| Oil capacity | 1.4 L |
| Engine warranty | 2 years B&S covered / 3 years Cox conditional |
| Drive | |
| Drive type | Hydrostatic transaxle |
| Drive model | Tuff Torq K46 |
| Drive warranty | 2 years conditional |
| Ground speed | Forward 0-10 km/h / reverse 0-6 km/h |
| Cutting system | |
| Cutter deck width | 32″ (805mm) |
| Blade engagement | Ogura electromagnetic clutch |
| Cutter belt type | Premium B-section |
| Height range | 20mm-75mm |
| Blade type | Heavy-duty swing back |
| Chassis | |
| Tyres | 13×5.00-6 (front) – 16×6.5-8 (rear) |
| Seat | Comfort seat with springs |
| Seat adjustment | Manual |
| Hour meter | Standard |
| Construction | Fabricated steel |
| Steering wheel | Premium steering wheel |
| Dimensions | |
| Length | 1700mm |
| Width | 805mm |
| Weight | 189kg |
| Warranty | 5 years conditional |
